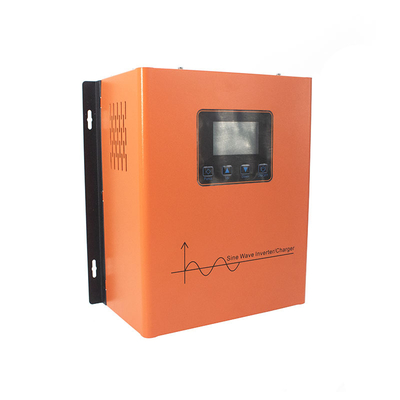

1600w 2kva Off Grid Inverter Solar DC 12V 24V Solar Inverter Charger Pure Sine Wave Inverter For Solar System 300*290*138mm

1 piece
MOQ
1600w 2kva Off Grid Inverter Solar DC 12V 24V Solar Inverter Charger Pure Sine Wave Inverter For Solar System 300*290*138mm
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Model Number: 1600W
Input Voltage: 220VAC±10%
Output Voltage: 220VAC±10%
Output Current: 15A
Output Frequency: 50HZ/60HZ±1%
Output Type: Single
Size: 300*290*138mm
Type: DC/AC Inverters
Inverter Efficiency: 80%
Weight: 11.5kg
Product Name: 2kva off grid solar inverter
Battery Voltage: 12/24V
Battery Type: Lithium/Lead-acid
Informação básica
Model Number: 1600W
Condições de Pagamento e Envio
Descrição de produto

1600w 2kva off grid solar inverter DC 12V 24V solar Inverter charger pure sine wave inverter for solar system

12V/24V/1600W/2KVA

Feature:

(1) Pure sine wave output, adaptable to different loads
(2) Optional with MPPT or PWM solar controller
(3) With energy-saving mode function, it is more convenient to use
(4) Output short circuit protection function
(5) According to user needs, you can adjust a number of parameters
Specification
Rated output power
2KVA(1600w）
Peak power
3200W
Power input
220VAC±10%
Input voltage range
154-264VAC±3V（Normal mode) 185-264VAC±3V（UPS mode）
Input frequency
50/60Hz±5%
Output voltage under mains
The output voltage under the mains is the same as the input voltage
Output frequency under mains
The output frequency under the mains is the same as the input frequency
Output voltage under inverter
220VAC±10%
Output frequency under inverter
50HZ/60HZ±1%
Output waveform under inverter
Sine wave
Battery Type
External lead-acid battery or water battery or lithium iron phosphate
Battery voltage
12/24VDC
Maximum AC charging current
15A
Battery charging voltage range
140-280VAC
Conversion time
≤10ms（UPS mode）/≤20ms（INV mode)
Load-to-peak ratio
（MAX)3:1
Standby power consumption
Ring cattle transformer no load ≤ voltage*0.5
Protective function
Mains power: input over-current air switch protection
Under inverter: overload protection, short circuit protection, low voltage protection
Function display
LCD dot matrix fine screen
Function keys: Voice switching (Chinese and English) mode selection (mains priority, battery priority, energy-saving mode),
charging current adjustment (20%-100%), alarm sound (switch)
Standby interface display
AC input voltage, output voltage, battery voltage, load ratio and other parameters are faulty displayed.
Voice prompt
Low battery protection buzzer keeps beeping
Low battery buzzer beeps every second
Overload buzzer keeps beeping
If the overload is less than 130%, the buzzer will beep once every second, and the output will be turned off after 30s. When the
overload is greater than 150%, the output will be turned off after 300mS.
Machine fault buzzer keeps beeping
Operating temperature
0℃~40℃
Storage temperature
-15℃~45℃
Relative temperature
-10℃~90℃ No condensation
Noise
＜45dB
Machine size（L*W*H)mm
300*290*138
Machine net weightKg
11.5kg
